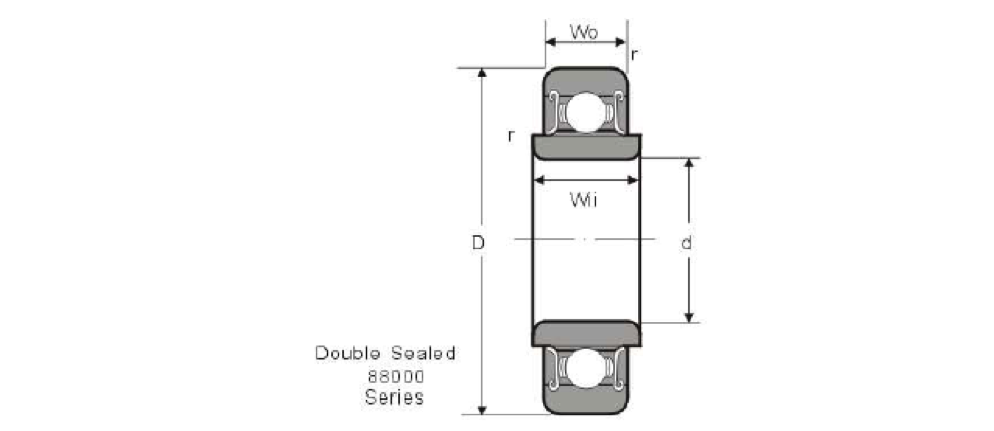

| Bearing No. | Bore d | Outer Diameter D | Width | Radius r | Basic Load Rating lbs | Weight lbs | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | Wo | Wii | mm | inch | Dynamic Cr | Static Cor | |||||
| mm | inch | mm | inch | |||||||||||
| 88035 | 5 | .1969 | 19 | .7480 | 8 | .3150 | 12.624 | .4970 | 0.3 | .012 | 524 | 198 | 0.026 | |
| 88036 | 6 | .2362 | 19 | .7480 | 8 | .3150 | 12.624 | .4970 | 0.3 | .012 | 524 | 198 | 0.027 | |
| 88006 | 6 | .2362 | 24 | .9449 | 8 | .3150 | 12.624 | .4970 | 0.3 | .012 | 747 | 314 | 0.055 | |
| 88037 | 7 | .2756 | 22 | .8661 | 8 | .3150 | 12.624 | .4970 | 0.3 | .012 | 740 | 306 | 0.043 | |
| 88007 | 7 | .2756 | 24 | .9449 | 8 | .3150 | 12.624 | .4970 | 0.3 | .012 | 747 | 317 | 0.051 | |
| 88038 | 8 | .3150 | 22 | .8661 | 8 | .3150 | 12.624 | .4970 | 0.3 | .012 | 740 | 306 | 0.040 | |
| 88008 | 8 | .3150 | 24 | .9449 | 8 | .3150 | 12.624 | .4970 | 0.3 | .012 | 747 | 317 | 0.048 | |
| 88039 | 9 | .3543 | 26 | 1.0236 | 8 | .3150 | 12.624 | .4970 | 0.6 | 0.25 | 1025 | 438 | 0.057 | |
| 88009 | 9 | .3543 | 30 | 1.1811 | 9 | .3543 | 16.401 | .6457 | 0.6 | 0.25 | 1047 | 465 | 0.105 | |
| 88500 | 10 | .3937 | 30 | 1.1811 | 9 | .3543 | 16.401 | .6457 | 0.6 | 0.25 | 1047 | 465 | 0.091 | |
| 88011 | 11 | .4331 | 32 | 1.2598 | 10 | .3937 | 15.400 | .6063 | 0.6 | 0.25 | 1375 | 626 | 0.104 | |
| 88501 | 12 | .4724 | 32 | 1.2598 | 10 | .3937 | 15.400 | .6063 | 0.6 | 0.25 | 1375 | 626 | 0.099 | |
| 88013 | 13 | .5118 | 32 | 1.2598 | 10 | .3937 | 15.400 | .6063 | 0.6 | 0.25 | 1375 | 266 | 0.095 | |
| 88014 | 14 | .5512 | 35 | 1.3780 | 11 | .4331 | 14.399 | .5669 | 0.6 | 0.25 | 1525 | 747 | 0.125 | |
| 88502 | 15 | .5906 | 35 | 1.3780 | 11 | .4331 | 14.399 | .5669 | 0.6 | 0.25 | 1525 | 747 | 0.119 | |
| 88016 | 16 | .6299 | 35 | 1.3780 | 11 | .4331 | 14.399 | .5669 | 0.6 | .025 | 1525 | 47 | 0.114 | |
| 88602 | 15 | .5906 | 42 | 1.6535 | 13 | .5118 | 17 | .6693 | 1.0 | .040 | 1940 | 76 | 0.210 | |
| 88503 | 17 | .6693 | 40 | 1.5748 | 12 | .4724 | 16.601 | .6536 | 0.6 | .025 | 1940 | 976 | 0.166 | |
| 88603 | 17 | .6693 | 47 | 1.8504 | 14 | .5512 | 18 | .7087 | 1.0 | .040 | 2885 | 1494 | 0.279 | |
| 88504 | 20 | .7874 | 47 | 1.8504 | 14 | .5512 | 17.750 | .6988 | 1.0 | .040 | 2885 | 1494 | 0.259 | |
| 88604 | 20 | .7874 | 52 | 2.0472 | 15 | .5906 | 23 | .9055 | 1.0 | .040 | 3150 | 1785 | 0.398 | |
| 88505 | 25 | .9843 | 52 | 2.0472 | 15 | .5906 | .16.749 | .6594 | 1.0 | .040 | 3150 | 1785 | 0.304 | |
| 88605 | 25 | .9843 | 62 | 2.4409 | 17 | .6693 | 25 | .9843 | 1.0 | .040 | 3150 | 1785 | 0.650 | |
| 88026 | 26 | 1.0236 | 52 | 2.0472 | 15 | .5906 | 16.749 | .6594 | 1.0 | .040 | 3150 | 1785 | 0.294 | |
| 88506 | 30 | 1.1811 | 62 | 2.4409 | 16 | .6299 | 24 | .9449 | 1.0 | .040 | 1970 | 1140 | 0.571 | |
| 88506 | 30 | 1.1811 | 72 | 2.8346 | 19 | .7480 | 27 | 1.0630 | 1.0 | .040 | 1970 | 1140 | 0.970 | |
| 88507 | 35 | 1.3780 | 72 | 2.8346 | 17 | .6693 | 25 | .9843 | 1.0 | .040 | 2120 | 1330 | 0.765 | |
| 88607 | 35 | 1.3780 | 80 | 3.1496 | 21 | .8368 | 29 | 1.1417 | 1.5 | .060 | 2120 | 1330 | 1.200 | |
| 88508 | 40 | 1.5748 | 80 | 3.1496 | 21 | .8268 | 27 | 1.0630 | 1.0 | .040 | 2960 | 1820 | 1.180 | |
| 88608 | 40 | 1.5748 | 90 | 3.5433 | 23 | .9055 | 31 | 1.2205 | 1.5 | .060 | 2960 | 1820 | 1.650 | |
| 88509 | 45 | 1.7717 | 85 | 3.3465 | 21 | .8268 | 27 | 1.0630 | 1.0 | .040 | 3300 | 2050 | 1.220 | |
| 88609 | 45 | 1.7717 | 100 | 3.9370 | 25 | .9843 | 35 | 1.3780 | 1.5 | .060. | 3300 | 2050 | 2.190 | |
| 88510 | 50 | 1.9685 | 90 | 3.5433 | 22 | .8661 | 30 | 1.1811 | 1.0 | .040 | 3560 | 2350 | 1.400 | |
| 88511 | 55 | 2.1654 | 100 | 3.9370 | 23 | .9055 | 31 | 1.2205 | 1.5 | .060 | 4390 | 2970 | 1.780 | |
| 88512 | 60 | 2.3622 | 110 | 4.3307 | 25 | .9843 | 33 | 1.2992 | 1.5 | .060 | 5900 | 3070 | 2.340 |
