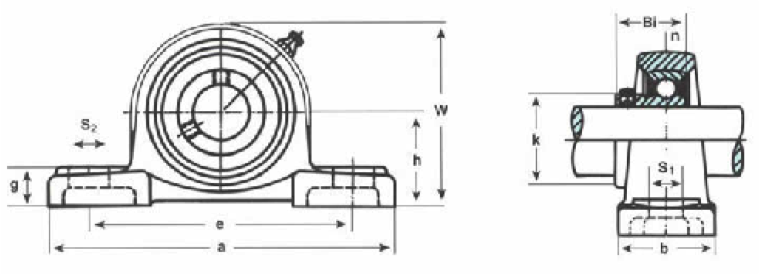

| SBP200-SERIES HIGH CENTER HEIGHT | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | ||||||||||
| h | a | e | b | S2 | S1 | g | w | Bi | n | kg | lbs. | |||||
| SBP201-8G | 1/2 | 1-1/4 | 4-15/16 | 3-3/4 | 1-1/2 | 5/8 | 31/64 | 1/2 | 2-1/4 | 0.867 | 0.229 | 3/8 | SB201-8G | P203 | 0.54 | 1.29 |
| SBP202-10G | 5/8 | SB202-10G | 0.54 | 1.32 | ||||||||||||
| SBP204-12G | 3/4 | 1-5/16 | 5 | 3-3/4 | 1-1/2 | 3/4 | 1/2 | 1/2 | 2-17/32 | 0.984 | 0.275 | 3/8 | SB204-12G | P204 | 0.63 | 1.39 |
| SBP205-14G | 7/8 | SB205-14G | ||||||||||||||
| SBP205-15G | 15/16 | 1-7/16 | 5-1/2 | 4-1/8 | 1-1/2 | 3/4 | 1/2 | 1/2 | 2-25/32 | 1.062 | 0.295 | 3/8 | SB205-15G | P205 | 0.83 | 1.83 |
| SBP205-16G | 1 | SB205-16G | ||||||||||||||
| SBP206-17G | 1-1/16 | 1-11/16 | 6-1/2 | 4-3/4 | 1-7/8 | 13/16 | 21/32 | 19/32 | 3-5/16 | 1.181 | 0.315 | 1/2 | SB206-17G | P206 | 1.34 | 2.95 |
| SBP206-18G | 1-1/8 | SB206-18G | ||||||||||||||
| SBP206-19G | 1-3/16 | SB206-19G | ||||||||||||||
| SBP206-20G | 1-1/4 | SB206-20G | ||||||||||||||
| SBP207-20G | 1-1/4 | 1-7/8 | 6-9/16 | 5 | 1-7/8 | 13/16 | 21/32 | 5/8 | 3-21/32 | 1.259 | 0.335 | 1/2 | SB207-20G | P207 | 1.57 | 3.46 |
| SBP207-21G | 1-5/16 | SB207-21G | ||||||||||||||
| SBP207-22G | 1-3/8 | SB207-22G | ||||||||||||||
| SBP207-23G | 1-7/16 | SB207-23G | ||||||||||||||
| SBP208-24G | 1-1/2 | 1-15/16 | 7-1/4 | 5-13/32 | 2-1/8 | 13/16 | 21/32 | 21/32 | 3-27/32 | 1.338 | 0.354 | 1/2 | SB208-24G | P208 | 2.04 | 4.50 |
| SBAK200-SERIES LOW CENTER HEIGHT | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | ||||||||||
| h | a | e | b | S2 | S1 | g | w | Bi | n | kg | lbs. | |||||
| SBAK204-12G | 3/4 | 1-1/4 | 5-1/4 | 3-7/8 | 1-5/8 | 9/16 | 7/16 | 9/16 | 2-1/2 | 0.984 | 0.275 | 3/8 | SB204-12G | AK204 | 0.82 | 1.81 |
| SBAK205-14G | 7/8 | 1-5/16 | 5-1/2 | 4-1/8 | 1-3/4 | 9/16 | 7/16 | 5/8 | 2-11/16 | 1.062 | 0.295 | 3/5 | SB205-14G | AK205 | 0.87 | 2.14 |
| SBAK205-15G | 15/16 | SB205-15G | ||||||||||||||
| SBAK205-16G | 1 | SB205-16G | ||||||||||||||
| SBAK206-17G | 1-1/16 | 1-9/16 | 6-5/16 | 4-3/4 | 1-7/8 | 3/4 | 9/16 | 11/16 | 3-5/32 | 1.181 | 0.315 | 1/2 | SB206-17G | AK206 | 1.33 | 2.93 |
| SBAK206-18G | 1-1/8 | SB206-18G | ||||||||||||||
| SBAK206-19G | 1-3/16 | SB206-19G | ||||||||||||||
| SBAK206-20G | 1-1/4 | SB206-20G | ||||||||||||||
| SBAK207-20G | 1-1/8 | 1-13/16 | 6-9/16 | 5 | 1-7/8 | 3/4 | 9/16 | 3/4 | 3-5/8 | 1.259 | 0.335 | 1/2 | SB207-20G | AK207 | 1.68 | 3.70 |
| SBAK207-21G | 1-5/16 | SB207-21G | ||||||||||||||
| SBAK207-22G | 1-3/8 | SB207-22G | ||||||||||||||
| SBAK207-23G | 1-7/16 | SB207-23G | ||||||||||||||
| SBAK208-24G | 1-1/2 | 1-15/16 | 7-1/8 | 5-1/2 | 2-1/8 | 3/4 | 9/16 | 3/4 | 3-15/16 | 1.338 | 0.354 | 1/2 | SB208-24G | AK208 | 2.03 | 4.50 |
