hi-q cast iron pulleys-two groove

for "A"(4L) and "B"(5L) v-belts

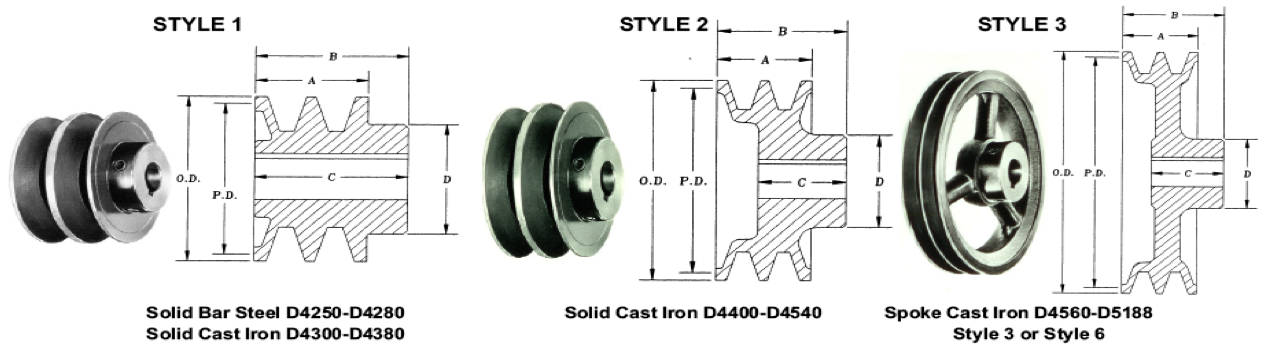

DIAMETER PART NUMBER STYLE STOCK BORES MARKED"X"x MAX BORE INCHES DIMENSIONx INCHES APPROX.WT LBS.
P.D./O.D INCHES D.D "A"BELT INCHES D.D "O"BELT INCHES     1/2 in 5/8 in 3/4 in 7/8 in 1 in 1-1/8 in 1-3/16 in 1-1/4 in 1-3/8 in 1-7/16 in   A B C D
2.45 2.1   D4250 1 x x x x x x         1-1/8 1-9/16 2 2 1-3/4 1.2
2.75 2.4 2.0 D4280 1 x x x x x x         1-1/8 1-9/16 2 2 2 1.0
2.95 2.6 2.2 D4300 1 x x x x x x         1-1/8 1-3/4 2-3/8 2-1/4 2.45 2.4
3.15 2.8 2.4 D4320 1 x x x x x x x x x   1-3/8 1-3/4 2-3/8 2-1/4 2.45 2.8
3.35 3.0 2.6 D4340 1 x x x x x x x x x x 1-1/2 1-3/4 2-3/8 2-1/4 2.45 3.3
3.55 3.2 2.8 D4360 1 x x x x x x x x x x 1-1/2 1-3/4 2-3/8 2-1/4 2.45 3.6
3.75 3.4 3.0 D4380 1   x x x x x x x x x 1-1/2 1-3/4 2-3/8 2-1/4 2.45 3.9
3.95 3.6 3.2 D4400 2   x x x x x x x x x 1-1/2 1-3/4 2-3/8 1-9/16 2.45 3.9
4.15 3.8 3.4 D4420 2   x x x x x x x x x 1-1/2 1-3/4 2-3/8 1-9/16 2.45 4.1
4.35 4.0 3.6 D4440 2   x x x x x x x x x 1-1/2 1-3/4 2-3/8 1-9/16 2.45 4.1
4.55 4.2 3.8 D4460 2   x x x x x x x x x 1-1/2 1-3/4 2-3/8 1-9/16 2.45 4.5
4.75 4.4 4.0 D4480 2   x x x x x x x x x 1-1/2 1-3/4 2-3/8 1-9/16 2.45 5.2
4.95 4.6 4.2 D4500 2   x x x x x x x x x 1-1/2 1-3/4 2-3/8 1-9/16 2.45 5.5
5.15 4.8 4.4 D4520 2   x x x x x x x x x 1-1/2 1-3/4 2-3/8 1-9/16 2.45 5.3
5.35 5.0 4.6 D4540 2   x x x x x x x x x 1-1/2 1-3/4 2-3/8 1-9/16 2.45 6.3
5.55 5.2 4.8 D4560 3     x x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 5.2
5.75 5.4 5.0 D4580 3     x x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 5.7
5.95 5.6 5.2 D4600 3     x x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 5.7
6.15 5.8 5.4 D4620 3     x x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 6.1
6.35 6.0 5.6 D4640 3     x x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 6.9
6.55 6.2 5.8 D4660 3     x x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 6.9
6.75 6.4 6.0 D4680 3     x x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 7.0
6.95 6.6 6.2 D4700 3     x x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 7.5
7.15 6.8 6.4 D4720 3     x x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 7.9
7.75 7.4 7.0 D4780 3     x x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 8.0
8.75 8.4 8.0 D4880 6       x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 9.2
8.95 8.6 8.2 D4900 6     x x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 10.5
9.75 9.4 9.0 D4980 6     x x x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 11.7
10.75 10.4 10.0 D5108 6         x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 12.9
11.35 11.0 10.6 D5114 6         x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 13.5
11.75 11.4 11.0 D5118 6         x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 16.3
12.75 12.4 12.0 D5128 6         x x x x x x 1-5/8 1-3/4 2-3/8 1-5/8 2-1/2 15.5
13.95 13.6 13.2 D5140 6           x x x x x 1-5/8 1-3/4 2-3/8 1-3/4 2-1/2 18.4
15.75 15.4 15.0 D5158 6         x x x x x x 1-5/8 1-3/4 2-3/8 1-3/4 2-1/2 23.6
18.75 18.7 18.0 D5188 6         x x x x x x 1-5/8 1-3/4 2-3/8 1-3/4 2-1/2 25.0
