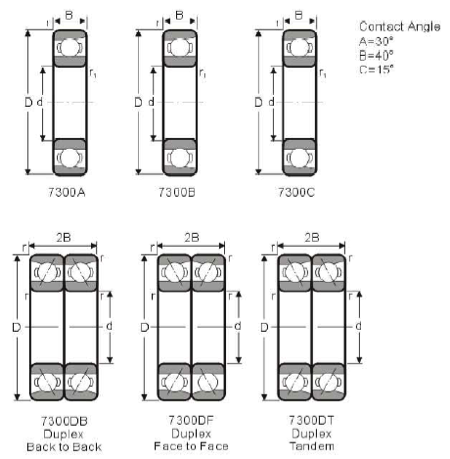

| Bearing No. | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating lbs | Weight lbs | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r | r1 | ||||||||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | Dynamic Cr | Static Cor | ||
| 7300B | 10 | 0.3937 | 35 | 1.3780 | 11 | 0.4331 | 1.0 | 0.039 | 0.5 | 0.020 | 2280 | 1110 | 0.106 |
| 7301B | 12 | 0.4724 | 37 | 1.4567 | 12 | 0.4724 | 1.5 | 0.059 | 0.8 | 0.031 | 2510 | 1180 | 0.136 |
| 7302B | 15 | 0.5906 | 42 | 1.6335 | 13 | 0.5118 | 1.5 | 0.059 | 0.8 | 0.031 | 3000 | 1620 | 0.172 |
| 7303B | 17 | 0.6693 | 47 | 4.8504 | 14 | 0.5512 | 1.5 | 0.059 | 0.8 | 0.031 | 3600 | 1940 | 0.236 |
| 7304B | 20 | 0.7874 | 52 | 2.0472 | 15 | 0.5906 | 2.0 | 0.079 | 1.0 | 0.039 | 4200 | 2340 | 0.304 |
| 7305B | 25 | 0.9843 | 62 | 2.4409 | 17 | 0.6693 | 2.0 | 0.079 | 1.0 | 0.039 | 5950 | 3550 | 0.483 |
| 7306B | 30 | 1.1811 | 72 | 2.8346 | 19 | 0.7480 | 2.0 | 0.079 | 1.0 | 0.039 | 7550 | 5000 | 0.743 |
| 7307B | 35 | 1.3780 | 80 | 3.1496 | 21 | 0.8268 | 2.5 | 0.098 | 1.2 | 0.047 | 9000 | 5900 | 0.999 |
| 7308B | 40 | 1.5748 | 90 | 3.5433 | 23 | 0.9055 | 2.5 | 0.098 | 1.2 | 0.047 | 11000 | 7400 | 1.430 |
| 7309B | 45 | 1.7717 | 100 | 3.9370 | 25 | 0.9843 | 2.5 | 0.098 | 1.2 | 0.047 | 14300 | 9800 | 1.890 |
| 7310B | 50 | 1.9685 | 110 | 4.3307 | 27 | 1.0630 | 3.0 | 0.118 | 1.5 | 0.059 | 16700 | 11700 | 2.400 |
| 7311B | 55 | 2.1654 | 120 | 4.7244 | 29 | 1.1417 | 3.0 | 0.118 | 1.5 | 0.059 | 19300 | 13900 | 3.060 |
| 7312B | 60 | 3.3622 | 130 | 5.1181 | 31 | 1.2205 | 3.5 | 0.138 | 2.0 | 0.079 | 22000 | 16100 | 3.840 |
| 7313B | 65 | 2.5591 | 140 | 5.5118 | 33 | 1.2992 | 3.5 | 0.138 | 2.0 | 0.079 | 25000 | 18400 | 4.650 |
| 7314B | 70 | 2.7559 | 150 | 5.9055 | 35 | 1.3780 | 3.5 | 0.138 | 2.0 | 0.079 | 28000 | 21000 | 5.640 |
| 7315B | 75 | 2.9528 | 160 | 6.2992 | 37 | 1.4567 | 3.5 | 0.138 | 2.0 | 0.079 | 30500 | 23800 | 6.770 |
| 7316B | 80 | 3.1496 | 170 | 6.6929 | 39 | 1.5354 | 3.5 | 0.138 | 2.0 | 0.079 | 33000 | 26700 | 8.050 |
| 7317B | 85 | 3.3465 | 180 | 7.0866 | 41 | 1.6142 | 4.0 | 0.157 | 2.0 | 0.079 | 35500 | 29800 | 9.570 |
| 7318B | 90 | 3.5433 | 190 | 7.4803 | 43 | 1.6929 | 4.0 | 0.157 | 2.0 | 0.079 | 38500 | 33000 | 11.200 |
| 7319B | 95 | 3.7402 | 200 | 7.8740 | 45 | 1.7717 | 4.0 | 0.157 | 2.0 | 0.079 | 41000 | 36500 | 13.000 |
| 7320B | 100 | 3.9370 | 215 | 8.4646 | 47 | 1.8504 | 4.0 | 0.157 | 2.0 | 0.079 | 46500 | 43500 | 15.800 |
| 7321B | 105 | 4.1339 | 225 | 8.8583 | 49 | 1.9291 | 4.0 | 0.157 | 2.0 | 0.079 | 49500 | 47500 | 18.100 |
| 7322B | 110 | 4.3307 | 240 | 9.4488 | 50 | 1.9685 | 4.0 | 0.157 | 2.0 | 0.079 | 55500 | 55500 | 21.200 |
| 7324B | 120 | 4.7244 | 260 | 10.2362 | 55 | 2.1654 | 4.0 | 0.157 | 2.0 | 0.079 | 55500 | 56500 | 32.400 |
| 7326B | 130 | 5.1181 | 280 | 11.0263 | 58 | 2.2835 | 5.0 | 0.197 | 2.5 | 0.098 | 61500 | 66000 | 38.800 |
| 7328B | 140 | 5.5118 | 300 | 11.8110 | 62 | 2.4409 | 5.0 | 0.197 | 2.5 | 0.098 | 67500 | 75500 | 47.400 |
| 7330B | 150 | 5.9055 | 320 | 12.5984 | 65 | 2.5591 | 5.0 | 0.197 | 2.5 | 0.098 | 74000 | 86000 | 55.300 |
