| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

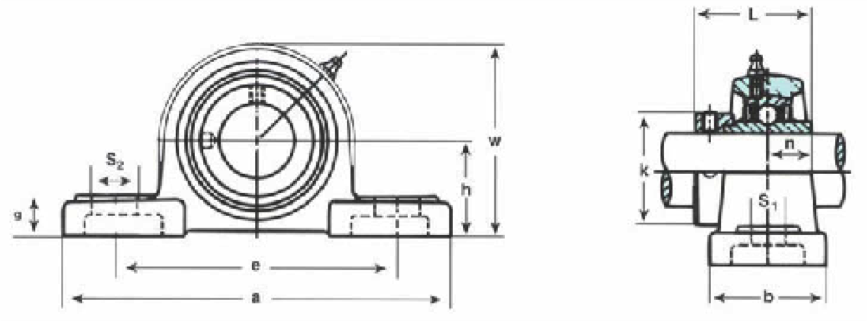

| h | a | e | b | S2 | S1 | g | w | L | n | k | kg | lbs. | |||||
| HCP202-10 | 5/8 | HC202-10 | |||||||||||||||
| HCP204-12 | 3/4 | 1-5/16 | 5 | 3-3/4 | 1-1/2 | 3/4 | 1/2 | 1/2 | 2-17/32 | 1.720 | 0.673 | 1-1/4 | 3/8 | HC204-12 | P204 | 0.70 | 1.54 |
| HCP204 | 20mm | HC204 | |||||||||||||||
| HCP205-14 | 7/8 | 1-7/16 | 5-1/2 | 4-1/8 | 1-1/2 | 3/4 | 1/2 | 1/2 | 2-25/32 | 1.748 | 0.688 | 1-1/2 | 3/8 | HC205-14 | P205 | 0.88 | 1.94 |
| HCP205-15 | 15/16 | HC205-15 | |||||||||||||||
| HCP205-16 | 1 | HC205-16 | |||||||||||||||
| HCP205 | 25mm | HC205 | |||||||||||||||
| HCP206-17 | 1-1/16 | HC206-17 | |||||||||||||||
| HCP206-18 | 1-1/8 | HC206-18 | |||||||||||||||
| HCP206-19 | 1-3/16 | 1-11/16 | 6-1/2 | 4-3/4 | 1-7/6 | 13/16 | 21/32 | 19/32 | 3-5/16 | 1.905 | 0.720 | 1-3/4 | 1/2 | HC206-19 | P206 | 1.46 | 3.22 |
| HCP206-20 | 1-1/4 | HC206-20 | |||||||||||||||
| HCP206 | 30mm | HC206 | |||||||||||||||
| HCP207-20 | 1-1/4 | HC207-20 | |||||||||||||||
| HCP207-21 | 1-5/16 | HC207-21 | |||||||||||||||
| HCP207-22 | 1-3/8 | 1-7/8 | 6-9/16 | 5 | 1-7/8 | 13/16 | 21/32 | 5/8 | 3-21/32 | 2.016 | 0.742 | 2-3/16 | 1/2 | HC207-22 | P207 | 1.74 | 3.84 |
| HCP207-23 | 1-7/16 | HC207-23 | |||||||||||||||
| HCP207 | 35mm | HC207 | |||||||||||||||
| HCP208-24 | 1-1/2 | HC208-24 | |||||||||||||||
| HCP208-25 | 1-9/16 | 1-15/16 | 7-1/4 | 5-13/32 | 2-1/8 | 13/16 | 21/32 | 21/32 | 3-27/32 | 2.220 | 0.844 | 2-3/8 | 1/2 | HC208-25 | P208 | 2.25 | 4.96 |
| HCP208 | 40mm | HC208 | |||||||||||||||
| HCP209-26 | 1-5/8 | 2-1/16 | 7-15/32 | 5-3/4 | 2-1/8 | 13/16 | 21/32 | 21/32 | 4-13/16 | 1.220 | 0.844 | 2-1/2 | 1/2 | HC209-26 | P209 | 2.53 | 5.58 |
| HCP209-27 | 1-11/16 | HC209-27 | |||||||||||||||
| HCP209-28 | 1-3/4 | HC209-28 | |||||||||||||||
| HCP209 | 45mm | HC209 | |||||||||||||||
| HCP210-30 | 1-7/8 | HC210-30 | |||||||||||||||
| HCP210-31 | 1-15/16 | 2-1/4 | 8-1/8 | 6-1/4 | 2-3/8 | 7/8 | 25/32 | 3/4 | 4-7/16 | 2.468 | 0.969 | 2-3/4 | 5/8 | HC210-31 | P210 | 3.14 | 6.92 |
| HCP210 | 50mm | HC210 | |||||||||||||||
| HCP211-32 | 2 | 2-1/2 | 8-5/8 | 6-23/32 | 2-3/8 | 7/8 | 25/32 | 3/4 | 4-29/32 | 2.814 | 1.049 | 3 | 5/8 | HC211-32 | P211 | 3.95 | 8.71 |
| HCP211-34 | 2-1/8 | HC211-34 | |||||||||||||||
| HCP211-35 | 2-3/16 | HC211-35 | |||||||||||||||
| HCP211 | 55mm | HC211 | |||||||||||||||
| HCP212-36 | 2-1/4 | 2-3/4 | 9-1/2 | 7-1/2 | 2-3/4 | 1 | 25/32 | 7/8 | 5-7/16 | 3.062 | 1.219 | 3-5/16 | 3/8 | HC212-36 | P212 | 5.50 | 12.1 |
| HCP212-38 | 2-3/8 | HC212-38 | |||||||||||||||
| HCP212-39 | 2-7/16 | HC212-39 | |||||||||||||||
| HCP212 | 60mm | HC212 | |||||||||||||||
| HCP215-47 | 2-15/16 | 3-1/4 | 10-13/16 | 8-17/32 | 2-29/32 | 1-3/16 | 1 | 1-3/32 | 6-3/6 | 3.374 | 1.469 | 4-1/32 | 3/4 | HC215-47 | P215 | 9.02 | 19.9 |
| HCP215-48 | 3 | HC215-48 | |||||||||||||||
