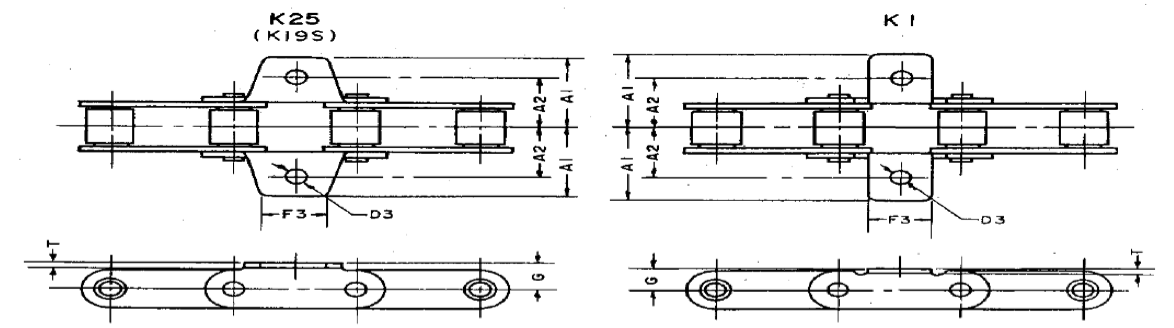

| Dimension-mm | |||||||
|---|---|---|---|---|---|---|---|
| Attachment | Chain No. | A1 | A2 | F3 | D3 | G | T |
| K25 | CA550 | 35.32 | 25.40 | 22.22 | 8.33 | 12.70 | 2.68 |
| K1 | CA550 | 37.70 | 25.40 | 22.22 | 6.75 | 10.72 | 2.68 |

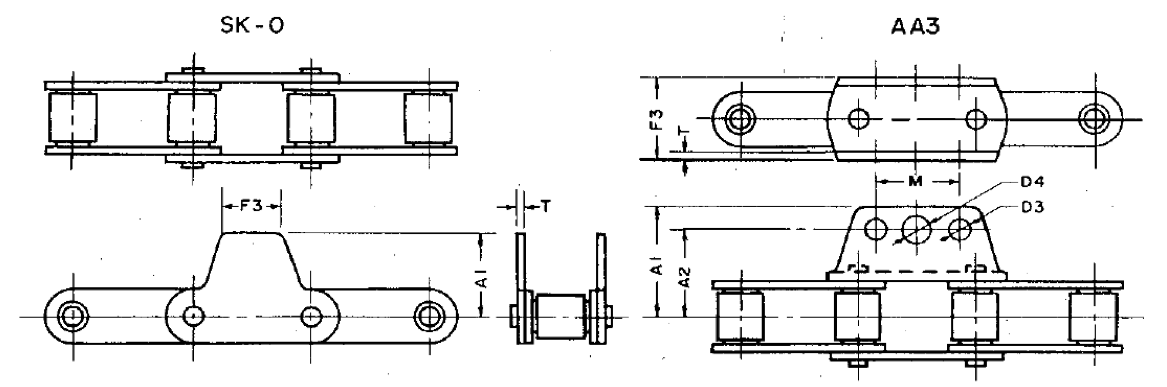

| Dimension-mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Attachment | Chain No. | A1 | A2 | M | D3 | D4 | F3 | T |
| SK-O | CA550 | 30.60 | 22.22 | 2.68 | ||||
| AA3 | CA550 | 40.25 | 31.95 | 30.20 | 8.20 | 10.00 | 30.00 | 3.18 |
