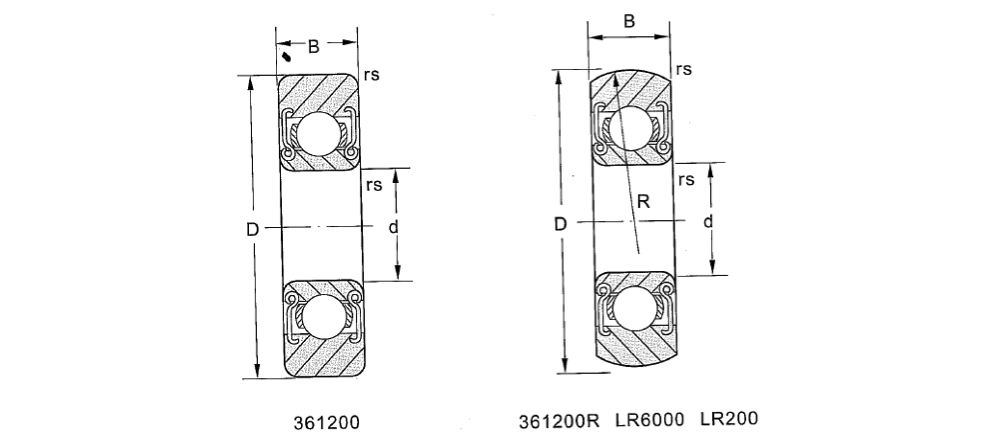

| Bearing No. | Bore d | Outer Diameter D | Width B | Fillet Radius rs | Spherical Radius R | Load Rating lbs | Weight lbs | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | Dynamic Cr | Static Cor | ||
| 361200 | 10 | .3937 | 32 | 1.2598 | 9 | 3543 | 0.6 | .024 | ---- | ---- | 1147 | 535 | .090 |
| 361200R | 10 | .3937 | 32 | 1.2598 | 9 | 3543 | 0.6 | .024 | 400 | 15.7480 | 1147 | 535 | .090 |
| 361201 | 12 | .4724 | 35 | 1.3780 | 10 | 3937 | 0.6 | .024 | ---- | ---- | 1535 | 688 | .114 |
| 361201R | 12 | .4724 | 35 | 1.3780 | 10 | 3937 | 0.6 | .024 | 400 | 15.7480 | 1535 | 688 | .114 |
| 361202 | 15 | .5906 | 40 | 1.5748 | 11 | 4331 | 0.6 | .024 | ---- | ---- | 1719 | 837 | .163 |
| 361202R | 15 | .5906 | 40 | 1.5748 | 11 | 4331 | 0.6 | .024 | 400 | 15.7480 | 1719 | 837 | .163 |
| 361203 | 17 | .6693 | 47 | 1.8504 | 12 | 4724 | 0.6 | .024 | ---- | ---- | 2153 | 1078 | .242 |
| 361203R | 17 | .6693 | 47 | 1.8504 | 12 | 4724 | 0.6 | .024 | 400 | 15.7480 | 2153 | 1078 | .242 |
| 361204 | 20 | .7874 | 52 | 2.0472 | 14 | 5512 | 1.0 | .039 | ---- | ---- | 2889 | 1496 | .352 |
| 361204R | 20 | .7874 | 52 | 2.0472 | 14 | 5512 | 1.0 | .039 | 400 | 15.7480 | 2889 | 1496 | .352 |
| 361205 | 25 | .9843 | 62 | 2.4409 | 15 | 5906 | 1.0 | .039 | ---- | ---- | 3155 | 1773 | .528 |
| 361205R | 25 | .9843 | 62 | 2.4409 | 15 | 5906 | 1.0 | .039 | 400 | 15.7480 | 3155 | 1773 | .528 |
| 361206 | 30 | 1.1811 | 72 | 2.8346 | 16 | 6299 | 1.0 | .039 | ---- | ---- | 4379 | 2545 | .748 |
| 361206R | 30 | 1.1811 | 72 | 2.8346 | 16 | 6299 | 1.0 | .039 | 400 | 15.7480 | 4379 | 2545 | .748 |
| 361207 | 35 | 1.3780 | 80 | 3.1496 | 17 | 6693 | 2.0 | .079 | ---- | ---- | 4356 | 2860 | .902 |
| 361207R | 35 | 1.3780 | 80 | 3.1496 | 17 | 6693 | 2.0 | .079 | 400 | 15.7480 | 4356 | 2860 | .902 |
| 361208 | 40 | 1.5748 | 85 | 3.3465 | 18 | 7087 | 2.0 | .079 | ---- | ---- | 4620 | 3190 | 1.012 |
| 361208R | 40 | 1.5748 | 85 | 3.3465 | 18 | 7087 | 2.0 | .079 | 400 | 15.7480 | 4620 | 3190 | 1.012 |
| LR6000 | 10 | .3937 | 28 | 1.1024 | 8 | 3150 | 0.3 | .012 | 500 | 19.6850 | 1031 | 443 | .022 |
| LR6001 | 12 | .4724 | 30 | 1.1811 | 8 | 3150 | 0.3 | .012 | 500 | 19.6850 | 1147 | 535 | .066 |
| LR6002 | 15 | .5906 | 35 | 1.2598 | 9 | 3543 | 0.3 | .012 | 500 | 19.6850 | 1258 | 639 | .110 |
| LR6003 | 17 | .6693 | 40 | 1.5748 | 10 | 3937 | 0.3 | .012 | 500 | 19.6850 | 1350 | 731 | .154 |
| LR6004 | 20 | .7874 | 47 | 1.8504 | 12 | 4724 | 0.6 | .024 | 500 | 19.6850 | 2111 | 1132 | .242 |
| LR200 | 10 | .3937 | 32 | 1.2598 | 9 | 3543 | 0.6 | .024 | 500 | 19.6850 | 1147 | 535 | .090 |
| LR201 | 12 | .4724 | 35 | 1.3780 | 10 | 3937 | 0.6 | .024 | 500 | 19.6850 | 1534 | 688 | .114 |
| LR202 | 15 | .5906 | 40 | 1.5748 | 11 | 4331 | 0.6 | .024 | 500 | 19.6850 | 1719 | 837 | .163 |
| LR203 | 17 | .6693 | 47 | 1.8504 | 12 | 4724 | 0.6 | .024 | 500 | 19.6850 | 2153 | 1078 | .242 |
| LR204 | 20 | .7874 | 52 | 2.0472 | 14 | 5512 | 1.0 | .039 | 500 | 19.6850 | 2889 | 1496 | .352 |
| LR205 | 25 | .9843 | 62 | 2.4409 | 15 | 5906 | 1.0 | .039 | 500 | 19.6850 | 3154 | 1773 | .528 |
