ATTACHMENTS FOR CA550 ROLLER CHAIN

Dimensions-mm

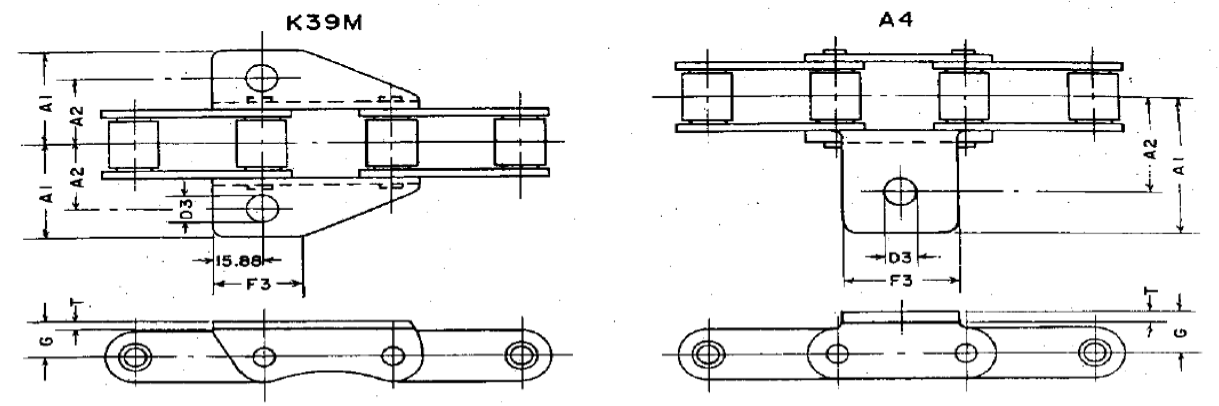

Attachment Chain No. A1 A2 F3 D3 G T
K39M CA550 35.72 25.40 29.50 9.78 12.70 2.68
A4 CA550 52.39 36.91 38.10 10.32 15.88 4.76

Dimensions-mm

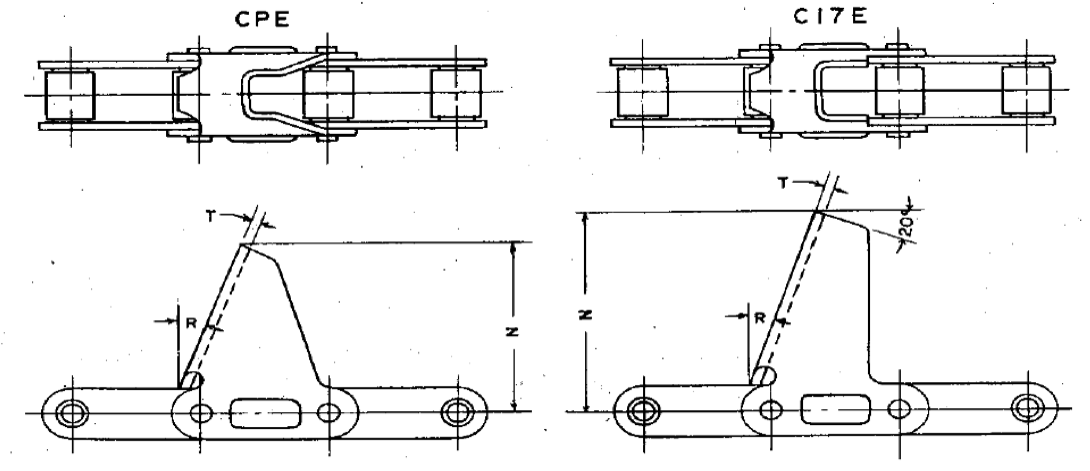

Attachment Chain No. R N T
CPE CA550 20¡ 64.7 2.68
C17E CA550 17 1/2¡ 76.2 2.68
