Metric Series Flanged 1

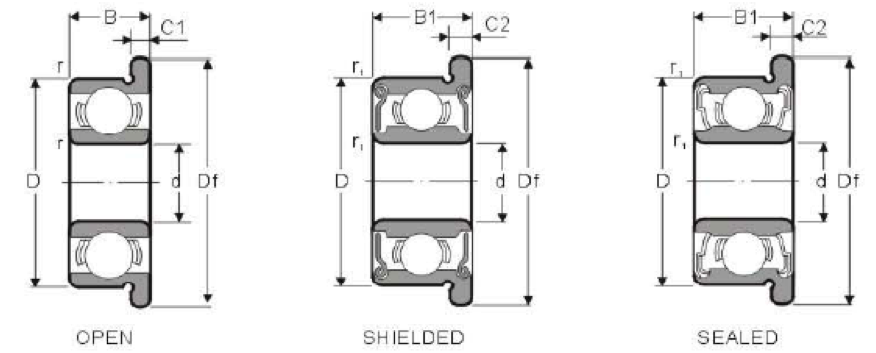

Bearing No.	Bore d mm	Outer Diameter D mm		Flange Width		Width		Radius r r1 mm	Basic Load Rating lbs		Weight lbs
		D	Df	C1	C2	Open B mm	Shielded B1 mm		Dynamic Cr	Static Cor
F681	1	3	3.8	0.3		1		0.05	18	5
F691	1	4	5.0	0.5		1.6		0.10	24	9
MF41X	1.2	4	4.8	0.4		1.8	2.5	0.10	24	9
F681X	1.5	4	5.0	0.4		1.2	2	0.05	20	7
F691X	1.5	5	6.5	0.6	0.8	2	2.6	0.15	29	11
F601X	1.5	6	7.5	0.6	0.8	2.5	3	0.15	55	22
F682	2	5	6.1	0.5	0.6	1.5	2.3	0.08	29	11
MF52	2	5	6.2	0.6	0.6	2	2.5	0.10	29	11
F692	2	6	7.5	0.6	0.8	2.3	3	0.15	55	22
NF62	2	6	7.2	0.6		2.5	3.5	0.15	55	22
MF72	2	7	8.2	0.6	0.6	2.5	2.5	0.15	66	29	0.001
F602	2	7	8.5	0.7	0.9	2.8	3.5	0.15	66	29	0.001
F682	2.5	6	7.1	0.5	0.8	1.8	2.6	0.08	35	14
F692X	2.5	7	8.5	0.7	0.9	2.5	3.5	0.15	66	29	0.001
MF82X	2.5	8	9.2	0.6		2.5		0.20	46	17	0.001
F602X	2.5	8	9.5	0.7	0.9	2.8	4	0.15	64	24	0.001
MF63	3	6	7.2	0.6	0.6	2	2.5	0.10	35	14
F683	3	7	8.1	0.5	0.8	2	3	0.10	66	29
MF83	3	8	9.2	0.6		2.5		0.15	64	24	0.001
F693	3	8	9.5	0.7	0.9	3	4	0.15	64	24	0.001
MF93	3	9	10.2*	0.6	0.8	2.5	4	0.20	99	42	0.001
F603	3	9	10.5	0.7		3		0.15	99	42	0.002
F623	3	10	11.5	1.0	1	4	4	0.15	99	42	0.004
MF74	4	7	8.2	0.6	0.6	2	2.5	0.10	58	25
MF84	4	8	9.2	0.6	0.6	2	3	0.15	88	33	0.001
F684	4	9	10.3	0.6	1	2.5	4	0.10	99	42	0.001
MF104	4	10	11.2*	0.6	0.8	3	4	0.20	99	42	0.002
F694	4	11	12.5	1	1	4	4	0.15	123	57	0.004
F604	4	12	13.5	1	1	4	4	0.20	167	77	0.005
F624	4	13	15.0	1	1	5	5	0.20	224	108	0.006
F634	4	16	18.0	1	1	5	5	0.30	300	140	0.012
