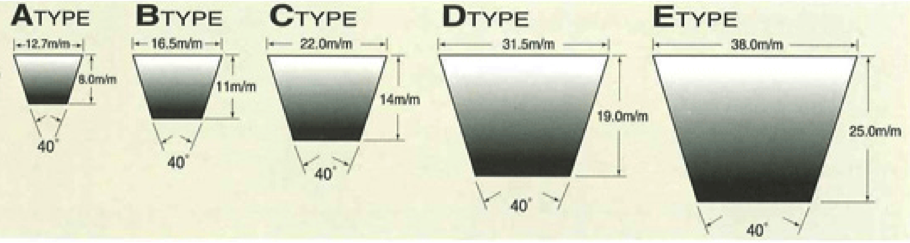

| Section | Approximate sizes | Available Range |
|---|---|---|
| A | 13X8 | 15"x480"(380mmx12190mm) |
| B | 17X11 | 19"x560"(480mmx14220mm) |
| C | 22X14 | 31"x560"(785mmx14220mm) |
| D | 32X19 | 70"x560"(1780mmx14220mm) |
| E | 38X25 | 120"x560"(3050mmx14220mm) |
| STANDARD SIZE LIST | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Parts No. | Belt O.C(in) | 13*8 Li(mm) | Parts No. | Belt O.C(in) | 17*11 Li(mm) | Parts No. | Belt O.C(in) | 22*14 Li(mm) | Parts No. | Belt O.C(in) | 32*19 Li(mm) |
| A24 | 26 | 610 | B 35 | 38 | 889 | C 48 | 52 | 1219 | D 120 | 123 | 3048 |
| A26 | 28 | 660 | B 38 | 41 | 965 | C 50 | 54 | 1270 | D 128 | 131 | 3251 |
| A31 | 33 | 787 | B 42 | 45 | 1067 | C 51 | 55 | 1295 | D 144 | 147 | 3658 |
| A35 | 37 | 889 | B 46 | 49 | 1168 | C 60 | 64 | 1524 | D 158 | 161 | 4013 |
| A42 | 44 | 1067 | B 55 | 58 | 1397 | C 70 | 74 | 1778 | D 180 | 183 | 4572 |
| A46 | 48 | 1168 | B 60 | 63 | 1524 | C 75 | 79 | 1905 | D 195 | 198 | 4953 |
| A48 | 50 | 1219 | B 68 | 71 | 1727 | C 81 | 85 | 2057 | D 210 | 213 | 5334 |
| A51 | 53 | 1295 | B 75 | 78 | 1905 | C 85 | 89 | 2159 | D 240 | 243 | 6096 |
| A55 | 57 | 1397 | B 81 | 84 | 2057 | C 90 | 94 | 2286 | D 270 | 273 | 6858 |
| A68 | 70 | 1727 | B 90 | 93 | 2286 | C 105 | 109 | 2667 | D 330 | 333 | 8382 |
| A75 | 77 | 1905 | B 97 | 100 | 2464 | C 112 | 116 | 2845 | D 360 | 363 | 9144 |
| A80 | 82 | 2032 | B 105 | 108 | 2667 | C 120 | 124 | 3048 | D 390 | 393 | 9906 |
| A85 | 87 | 2159 | B 112 | 115 | 2845 | C 128 | 132 | 3251 | D 420 | 423 | 10668 |
| A90 | 92 | 2286 | B 120 | 123 | 3048 | C 133 | 137 | 3378 | D 480 | 483 | 12192 |
| A96 | 98 | 2438 | B 128 | 131 | 3251 | C 144 | 148 | 3658 | D 560 | 563 | 14224 |
| A99 | 101 | 2515 | B 130 | 133 | 3302 | C 155 | 159 | 3937 | Parts No. | Belt O.C(in) | 38*25 Li(mm) |
| A100 | 102 | 2540 | B 133 | 136 | 3378 | C 160 | 164 | 4064 | E 210 | 213 | 5334 |
| A102 | 104 | 2591 | B 140 | 143 | 3556 | C 170 | 174 | 4318 | E 240 | 243 | 6096 |
| A105 | 107 | 2667 | B 144 | 147 | 3658 | C 173 | 177 | 4394 | E 270 | 273 | 6858 |
| A112 | 114 | 2845 | B 158 | 161 | 4013 | C 180 | 184 | 4572 | E 300 | 303 | 7620 |
| A120 | 122 | 3048 | B 180 | 183 | 4572 | C 210 | 214 | 5334 | E 360 | 361 | 9144 |
| A128 | 130 | 3251 | B 195 | 198 | 4953 | C 225 | 227 | 5715 | E 390 | 391 | 9906 |
| A133 | 135 | 3378 | B 210 | 213 | 5334 | C 270 | 272 | 6858 | E 420 | 421 | 10668 |
| A155 | 157 | 3937 | B 270 | 271 | 6858 | C 330 | 332 | 8382 | E 480 | 481 | 12192 |
| A169 | 171 | 4293 | B 285 | 286 | 7239 | C 360 | 362 | 9144 | E 560 | 561 | 14224 |
| A180 | 182 | 4572 | B 315 | 316 | 8001 | C 420 | 422 | 10668 |
